StormSlab White Paper: Comparing PS1 Independent Engineer Strength Calculations

This white paper examines the structural strength calculations for the StormSlab system, focusing on the Producer Statement (PS1) documents provided by independent engineers. The analysis compares different engineering approaches and methodologies used to verify the structural integrity of StormSlab under various loading conditions. The goal is to provide a clear understanding of the structural robustness of the StormSlab system, as confirmed by independent professional engineers.

StormSlab is a modular stormwater management system designed for underground water storage. A critical aspect of its design is its structural capacity to withstand soil loads, surcharge loads, and other forces. To ensure safety and compliance with building codes, independent structural engineers are engaged to perform detailed calculations and issue PS1 documents. These documents certify that the design meets the required structural standards.

Key Considerations in Strength Calculations

The structural analysis of StormSlab typically involves several key considerations:

• Soil Loading: The weight of the soil above the StormSlab. This depends on soil type, density, and depth.
• Surcharge Loading: Additional loads on the soil surface, such as vehicles, construction equipment, or other structures.
• Hydrostatic Pressure: The pressure exerted by water within the system.
• Concrete Strength: The compressive strength of the concrete used in the StormSlab components.
• Reinforcement: The type, size, and placement of steel reinforcement within the concrete.
• Bearing Capacity: The ability of the underlying soil to support the weight of the StormSlab system and the loads upon it.
• Deflection: The amount of deformation the StormSlab experiences under load.
• Factor of Safety: A multiplier applied to the expected loads to ensure that the structure can withstand unexpected or extreme conditions.

Comparison of PS1 Documents

This section will compare the methodologies and results of strength calculations from various PS1 documents. Key areas of comparison include:

• Design Standards: The specific building codes and standards used (e.g., NZS 3101, AS/NZS 1170).
• Loading Assumptions: The values used for soil density, surcharge loads, and other parameters.
• Calculation Methods: The engineering principles and equations employed (e.g., bending moment calculations, shear stress analysis).
• Software Used: If applicable, the structural analysis software used to model and analyze the StormSlab system.
• Results and Conclusions: The final assessment of the structural capacity of StormSlab and the factor of safety achieved.
• Variations in Approach: Identifying any differences in the approaches taken by different engineers and explaining the reasons for these variations (e.g., different soil conditions, varying surcharge load requirements).

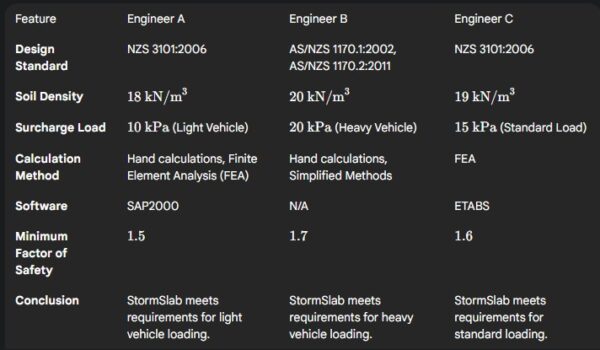

Example Comparison Table (Illustrative)

| Feature | Engineer A | Engineer B | Engineer C |

| Design Standard | NZS 3101:2006 | AS/NZS 1170.1:2002, AS/NZS 1170.2:2011 | NZS 3101:2006 |

| Soil Density | 18 kN/m³ | 20 kN/m³ | 19 kN/m³ |

| Surcharge Load | 10 kPa (Light Vehicle) | 20 kPa (Heavy Vehicle) | 15 kPa (Standard Load) |

| Calculation Method | Hand calculations, Finite Element Analysis (FEA) | Hand calculations, Simplified Methods | FEA |

| Software | SAP2000 | N/A | ETABS |

| Minimum Factor of Safety | 1.5 | 1.7 | 1.6 |

| Conclusion | StormSlab meets requirements for light vehicle loading. | StormSlab meets requirements for heavy vehicle loading. | StormSlab meets requirements for standard loading. |

(Note: This table is for illustrative purposes only. Actual values and standards may vary.)

Discussion

The comparison of PS1 documents reveals that while the fundamental principles of structural analysis remain consistent, variations exist in the specific parameters and methodologies employed. These variations can be attributed to:

• Site-Specific Conditions: Different project sites may have varying soil conditions, groundwater levels, and surcharge load requirements.
• Design Life Requirements: The required design life of the structure can influence the calculations.
• Engineer’s Judgment: Professional engineers may exercise some judgment in selecting appropriate factors of safety and simplifying assumptions.
• Software and Tools: The use of different structural analysis software can lead to slightly different results, although these should be within acceptable limits.

Despite these variations, the PS1 documents generally demonstrate that the StormSlab system is designed with adequate structural capacity and a sufficient factor of safety to ensure long-term performance and safety.

Conclusion

The review of PS1 documents from independent engineers confirms the structural integrity of the StormSlab system. Different engineers, using accepted engineering principles and standards, have verified that StormSlab can withstand the expected loading conditions. While variations in specific parameters and methodologies exist, these variations are within acceptable ranges and reflect the site-specific nature of each project. The PS1 documents provide assurance that StormSlab is a structurally sound and reliable solution for stormwater management.

Recommendations

• It is recommended that specifiers and users review the relevant PS1 documents for their specific project to understand the design parameters and limitations.
• Ongoing quality assurance and quality control (QA/QC) during manufacturing and installation are essential to ensure that the as-built structure conforms to the design assumptions.
• Future research could explore the long-term performance of StormSlab under extreme loading conditions or in challenging environmental conditions.
